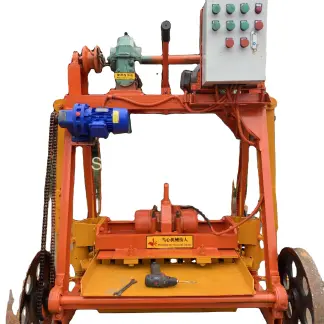

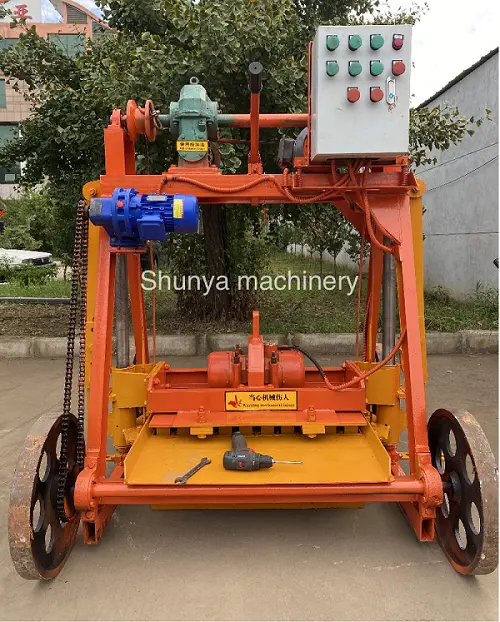

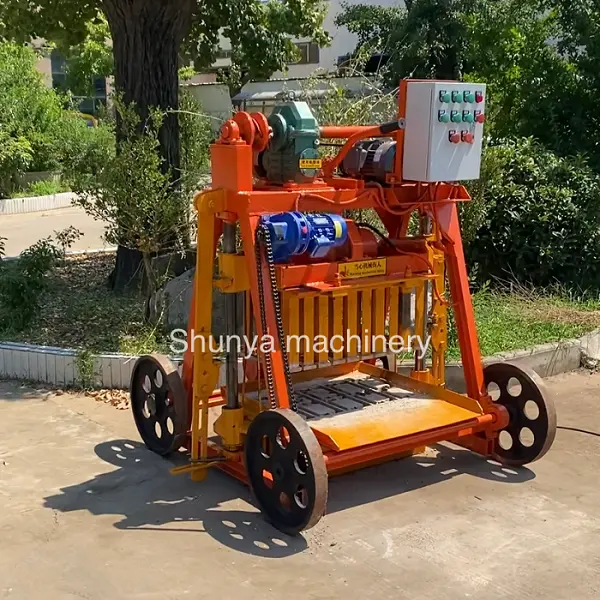

QMY4-45 Lay egg machine block making Machine

Specification

QMY4-45 mobile block making machines mall manual block making machine:
1. Using the manual force control and jog control together, the operation is simple and efficient.
2. Using four poles oriented manner and ultralong orientation bear to ensure the precise movement of the pressure head and mold.
3. lt is a multi-useful machine, which could produce different specifications of concrete products via changing the block mold.
4.Using imported electrical appliances, sealing parts and parts of hydraulic components, the equipment's comprehensive performance is stable and reliable.

Specification

QMY4-45 mobile brick making machine, We can produce 4 standard hollow bricks of 200 * 200 * 400mm every 45 seconds, and produce 1600 standard hollow bricks per day. vibration mode adopts mode vibration working mode，The overall size of the machine is 1350 * 1300 * 1650mm,The overall weight is 1500 kilograms and the machine power is 6.65 kw.

Advantage

The machine has a novel design, compact structure, and is manufactured using high-strength steel and special welding technology. It widely uses imported components, making the body more reliable. Our machine molds support customization, which can meet the needs of our customers. This machine does not require the use of pallets, saving a lot of manpower and material resources, and reducing capital investment. This machine has strong practicality and is not only suitable for producing high-strength concrete bricks, but also for producing bricks from materials such as waste coal ash, slag, and slag，Waste can be utilized to save production costs. This machine adopts a 350 reducer, cast steel casing, and forged gears inside to increase its service life. The time relay of the machine control box is made of thick seamless steel pipe, which is not easily damaged or deformed. Using well-known brand generators with excellent quality and guaranteed quality. Double bearing design, high strength, longer lifespan.
