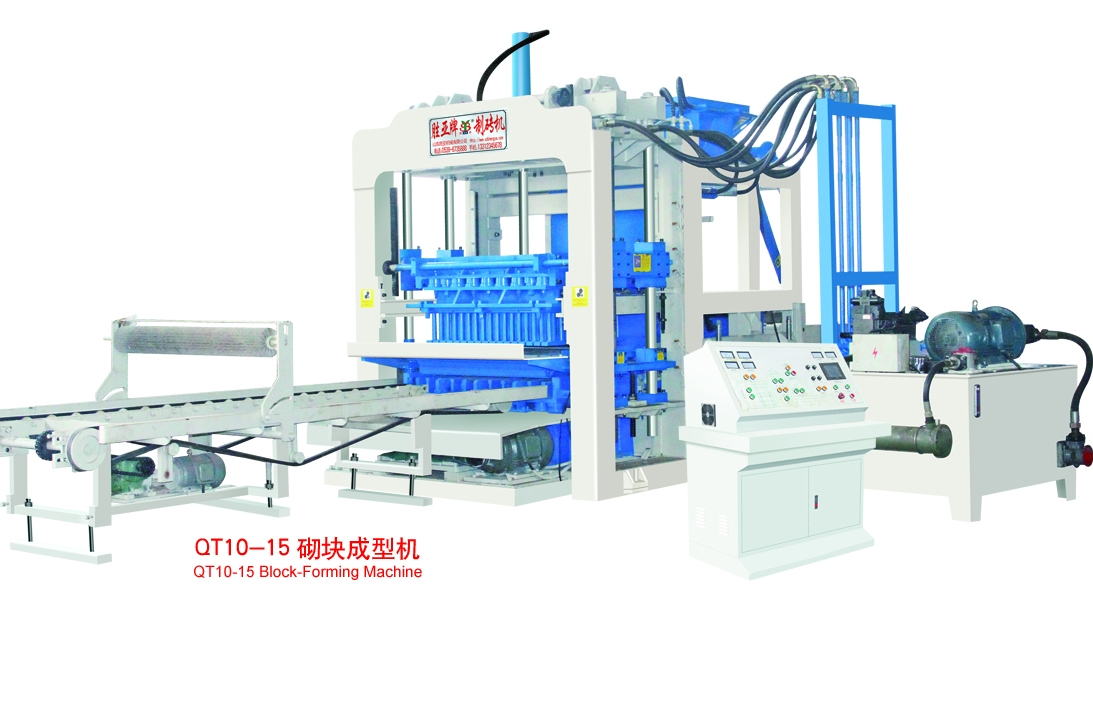

QT10-15 Hydraulic Fully Automatic Concrete Block Hollow Brick Making Machine
Product details page content section:
Product Characteristics
Our fully automatic block machine QT10-15 comes with hydraulic stacker system can easily get a big capacity. By the way, it has below advantages:
1.Reasonable design, compact structure, the structure with strong steel and special welding technology. Widely use the imported accessory to make the machine working stable and reliable.
2.High-efficiency and powerful vibration system design come with the computer controlled hydraulic system to achieve vertical synchronization vibration, frequency changeable, brakes double-ended synthesis output, balanced and high-efficiency transmit the vibration pressure to all parts of the mould box to enhance the density of the block and extend the mould box life.
3.All of the machine is controlled by the PLC system, with man-machine interface controlling system, so the signal analysis, fault diagnosis becomes true, and also the parameter of setting up for shaping. which makes the machine to be the best working condition.
4.Equipped with the special hydraulic stacking machine, it can make large production capacity, automatic operation to be true. at the same time, it will reduce labor, the conservation area, and also the investment.
5.the semi-closed forced spiral discharging system make material discharge more quickly and even.
6.The device of material storge and discharging use closed electric roller drive. it strictly control storage quantity of the small hopper, so as to send the concrete when concrete needed, which can prevent liquefaction in advance by the aftershocks.
Specification
QT10-15 machine’s molding cycle is 15s. The machine power is 50.8KW and voltage is 380V/50Hz (adjustable). QT10-15 machine’s vibrating force is 40KN and vibration frequency is 0-60Hz. Its equipped carriage size is 1220(L)x900(W)x25(H)mm. All the machine in our factory has Certification CE/ISO9001.
Advantage
Shandong Shunya Machinery Co., Ltd. is a professional factory for thirty years. We have exported over 130 countries and regions and gains lots of good feedback. Except for common molds type, we can also customize brick molds, just inform us your brick sample pictures or brick drawings. Our warranty term is one year guarantee. If needed, we will support field installation and training services by our engineer in buyer's place (about 7-10days), buyer should support the engineer's salary by the day and the round-trip tickets. We are looking forward to your sincere cooperation.
