QT4-15 Hydraulic Automatic Concrete Cement Hollow Block Brick Making Machine

Product details page content section:

Production Characteristics

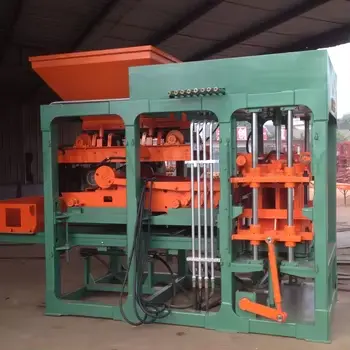

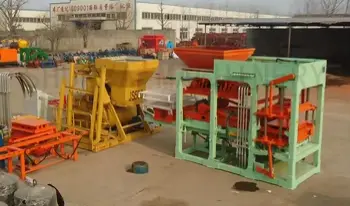

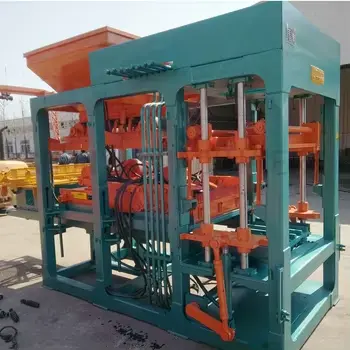

QT4-15 Block Making Machine:
1.Efficient, super exciting system design, the use of computer control hydraulic system flow pressure, to achieve vertical synchronous vibration, frequency conversion, braking, and double end synthesis output, balanced and efficient exciting force to all parts of the mold box, greatly improve the product density, and mold box service life.
2.Adopt intelligent PLC control, man-machine interface, automatic fault diagnosis, vibration system adopts electro-hydraulic proportional valve control, realizing low frequency feeding and high frequency vibration molding, installing multi-row mixing fork cloth system, can quickly and evenly release materials into the mold box.
3. The storage and distribution device adopt closed electric roller drive, strictly controls the storage amount of small hopper, so as to be used with delivery, and prevent the concrete from being liquefied in advance by aftershocks, affecting the fabric.
QT4-15 Cement Block Forming Machine’s main technical characteristics: Advanced hydraulic system and electro-hydraulic integration system is adopted to control, simple in operating, reliable in running. Its material distributing system mounted with multirow of stirring fork scan quickly and evenly discharge the materials into the molding box. The integration of hydraulic pressuring and vibrating make the brick shaping more quickly and strength in density. And it is multi-using, can produce different size of blocks with different moulds.

Specification

QT4-15 automatic machine size is about 3700(L)x1620(w)x2550(H)mm, its molding cycle is 15s. The machine power is 29.4KW and its voltage is 380V/50Hz (adjustable). QT4-15 machine’s weight is about 6000KGS. Its vibration force can up to 88KN and its vibration frequency is 4000-4800 r/minute. Its rated pressure is 16MPa. Its equipped carriage size is 900(L)x550(W)x30(H)mm. All the machines in our factory have Certification CE/ISO9001.

Advantage

Shandong Shunya Machinery Co., Ltd. has exported to over 130 countries and regions. Our company have five branches in Tanzania, Nigeria, Ethiopia, Côte d'Ivoire, Burkina faso. Our machines usually can use for nearly decade years. Shandong Shunya Machinery Co., Ltd. is warmly willing to carry out various forms of cooperation with the Chinese and foreign enterprises to seek deep development.
