QT6-15 Fully Automatic Hydraulic Concrete Cement Block Brick Making Machinery
Product details page content section:
Specification
The overall size of the QT6-15 brick Making machine is 4410×2000×2510mm, and its cycle time is 15 seconds. The size of the pallet is 900×680×22mm.The vibration frequency of the QT6-15 brick making machine is 4000-4800r/Min，and its electrical source is 380v/50Hz,The electrical source can be adjusted according to the customer's requirements.The power of the brick making machine is 36.4 kilowatts and the total weight of the machine is 6000 kilograms.
Elaborate Design
1.QT6-15 brick making machine is equipped with a PLC control system and can be precisely operated through the touch screen. The buttons of the PLC control system have a dust-proof design, making them more durable.
2.Molds and brushes were installed on the machine, which can effectively remove more sediment, making the produced bricks more beautiful.The machine uses stronger interlocking device which makes machine more accurate height.
3.The mold is made of thickened steel plates and has undergone heat treatment, making it much more sturdy and durable.

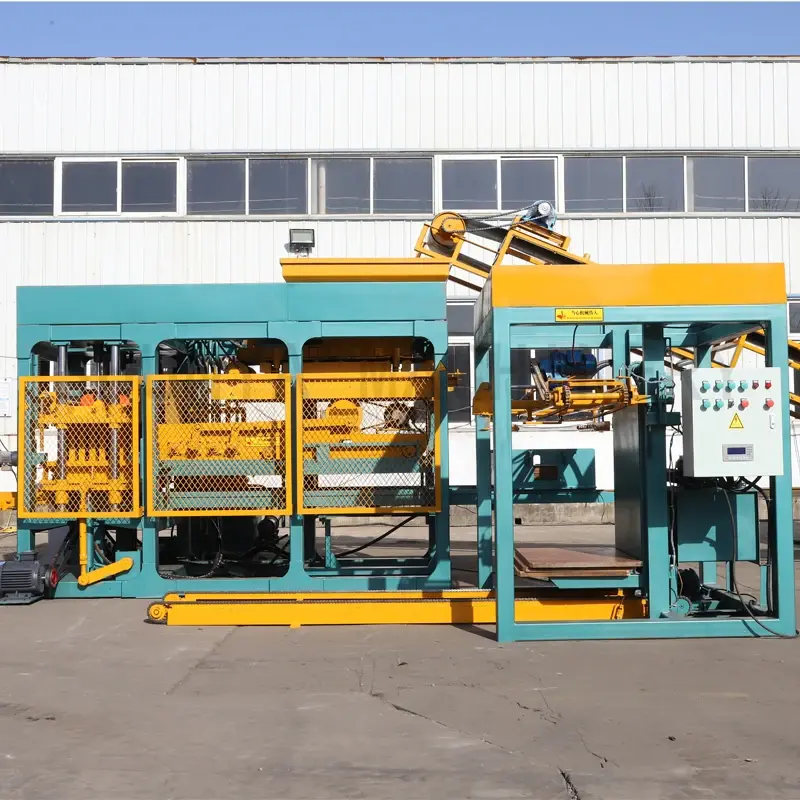

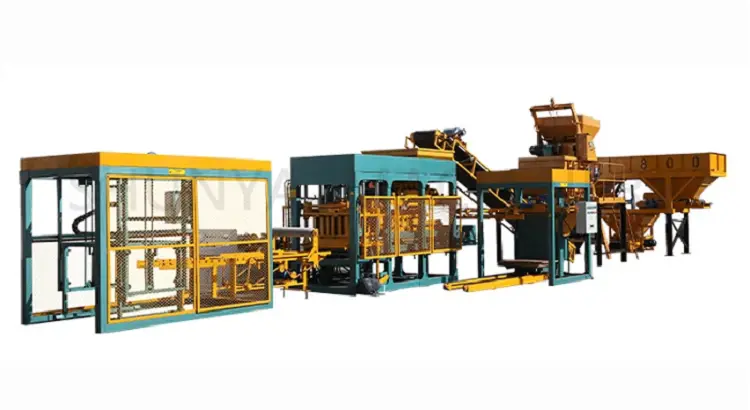

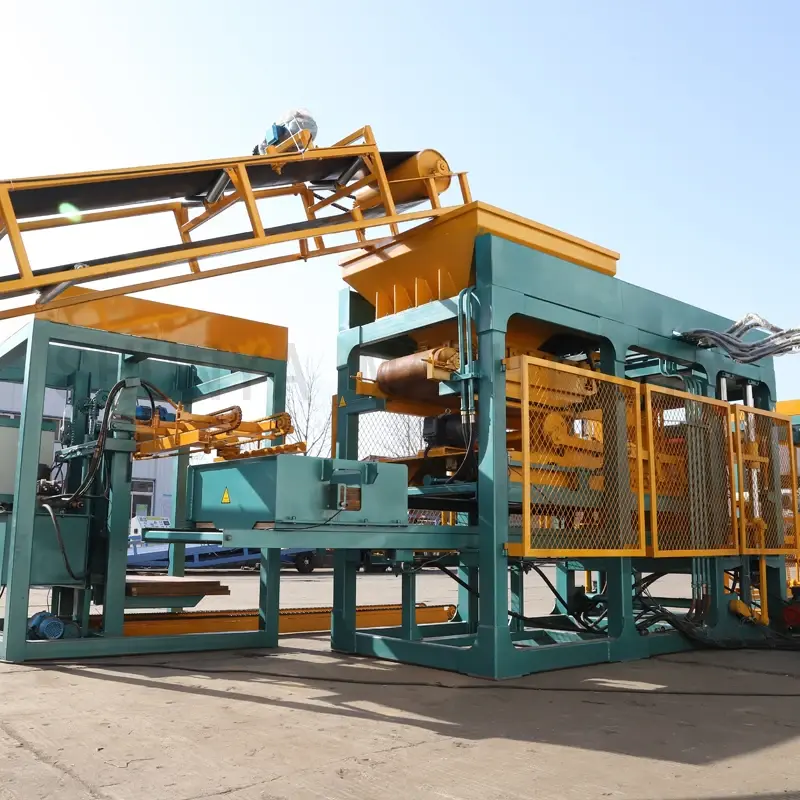

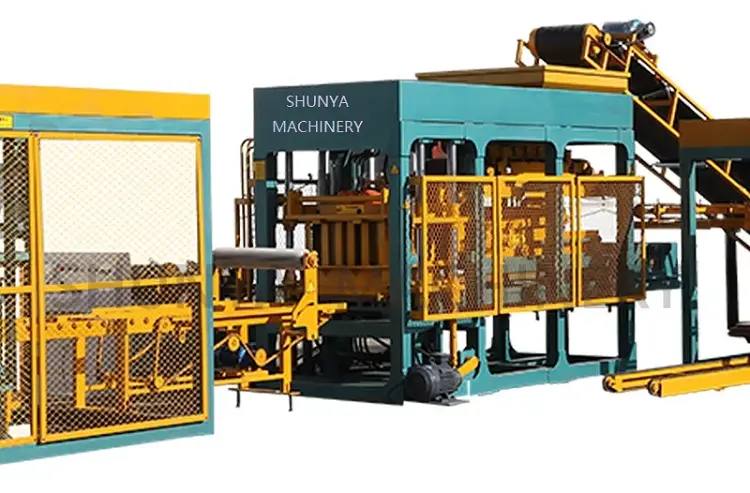

Product Presentation
This machine has a high forming pressure and high brick strength; it has a high degree of automation and can achieve continuous operations of raw material mixing, transportation, pressing and brick production, thus saving manpower; the production efficiency is stable, and each unit can produce thousands of bricks per hour; the energy consumption is low, meeting the requirements of energy conservation and environmental protection.The QT6-15 fully automatic bricklaying forming machine production line adopts PLC intelligent control, achieving the intuitiveness of the human-machine interface. The control system is equipped with a complete logic control, production program, fault diagnosis system and remote control functions.The fully automatic hydraulic concrete brick-making machine, with its features of high efficiency, environmental friendliness and multi-functionality, has become a key equipment for the transformation and upgrading of the building materials industry.
